See our description file and videos with detailed step-by-step instructions to establish a RS232 or USB-SPP connection.
Necessary equipment:

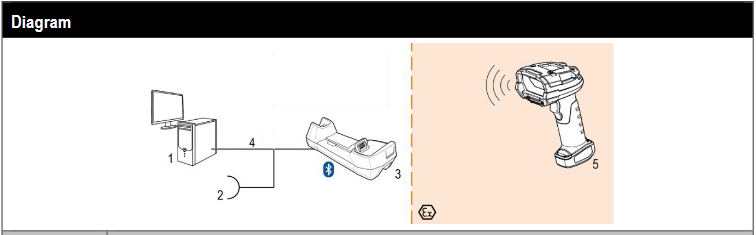

- Host PC with interface and software for data processing
- AC-Power cord
- Base station
- Connection cable for RS232 or USB-SPP
- Bluetooth handheld scanner BCS3678ex-NI or BCS3678ex-IS
Article - Step-by-step connection examples of BCS36x8ex series
The following videos were created based on the BCS3678ex-NI or -IS version.
The connection can also be made using the appropriate equipment belonging to another Ex-approval.
(This requires the use of the corresponding compatible accessories.)
required equipment:
| Equipment | Zone 2/22/Division 2 | Zone 1/21 |
| Bluetooth handheld scanner | B7-A2S4-2HP1 B7-A2S4-2ER1 | 17-A1S4-2HP1 |
| Base station | G7-A0Z0-0010 | 17-A1Z0-0014 |
| Connection cable | G7-A0Z0-0014 G7-A0Z0-0015 G7-A0Z0-0016 G7-A0Z0-0018 | 17-A1Z0-0020 17-A1Z0-0026 17-A1Z0-0027 |
- further required equipment see notes in the video
Video: Connection of the handheld scanner BCS3678ex-NI (Zone 1/21) via base station and USB interface to a PC.
- See chapter 8 in the step-by-step example.
Download Video with German subtitles
Download Video with English subtitles
Video: Connection of the handheld scanner BCS3678ex-NI (Zone 2/22/Division 2) via base station and RS232 interface to a PC.
- See chapter 9 in the step-by-step example.
Download Video with German subtitles
Download Video with English subtitles
